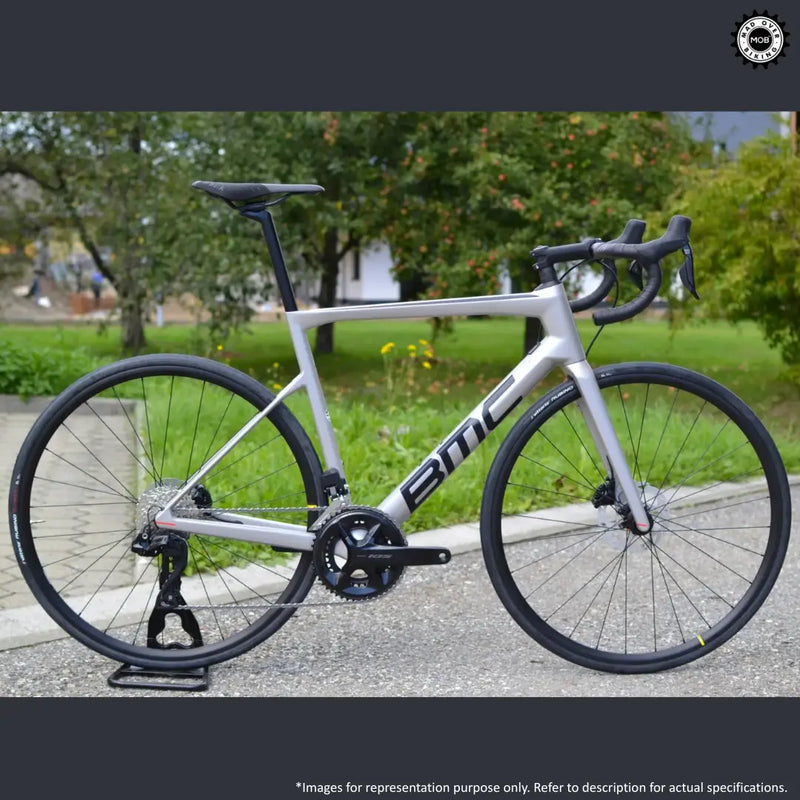

Unleash Your Competitive Spirit: The Teammachine SLR Shimano 105 12spd

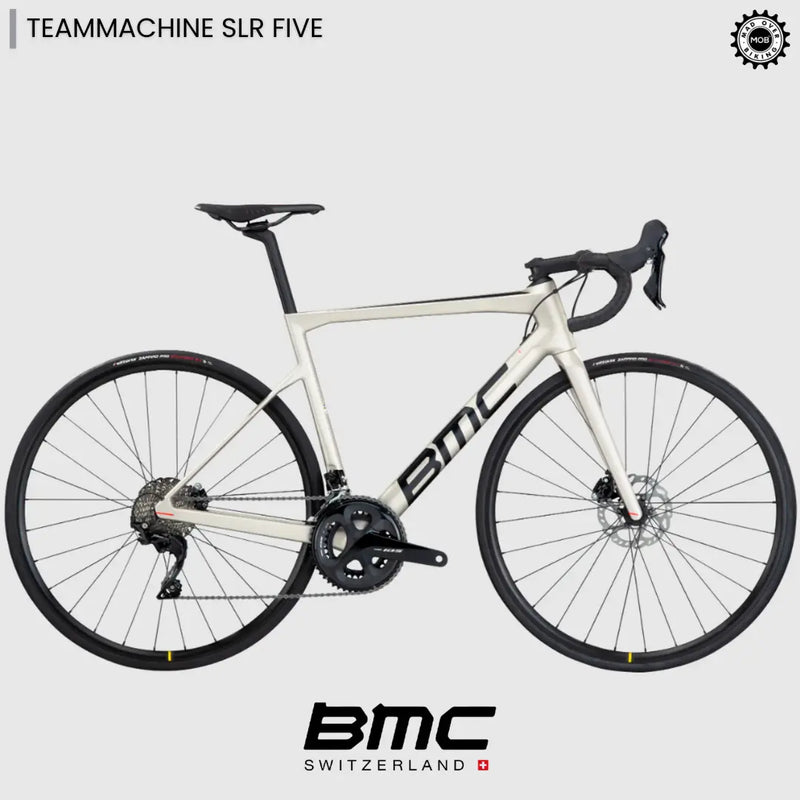

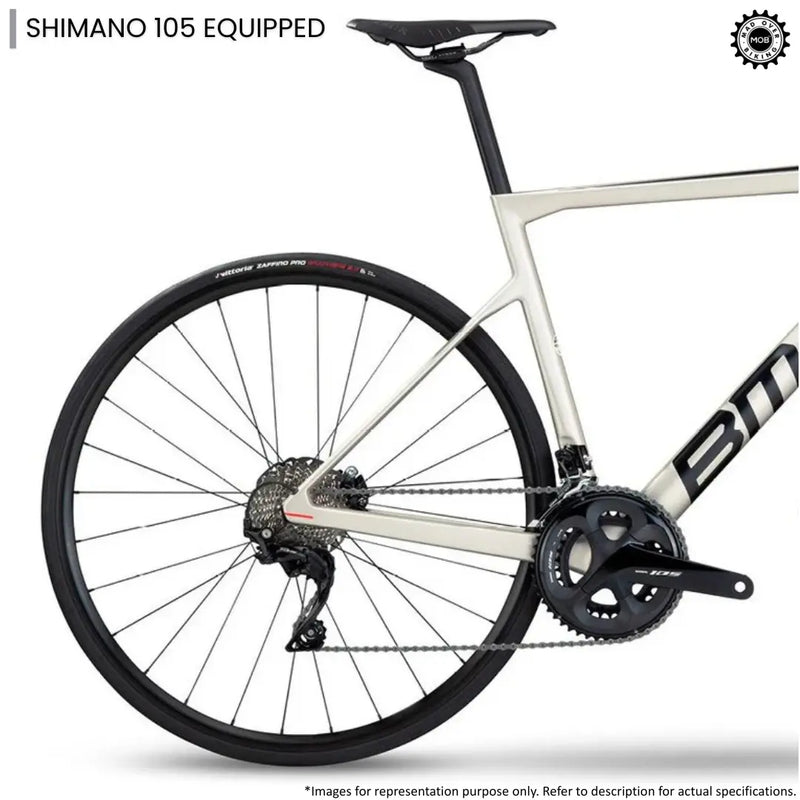

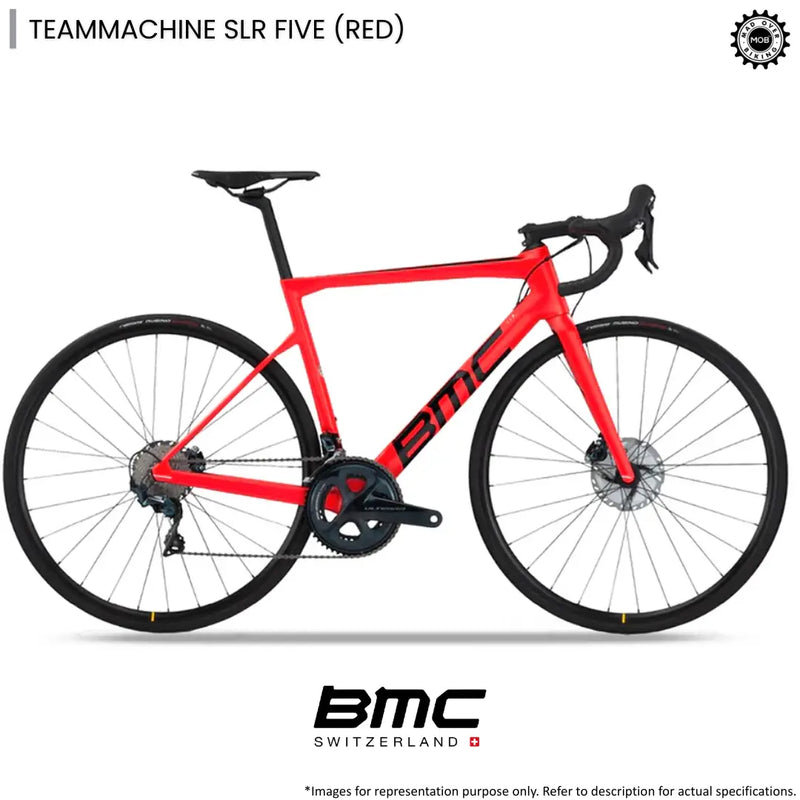

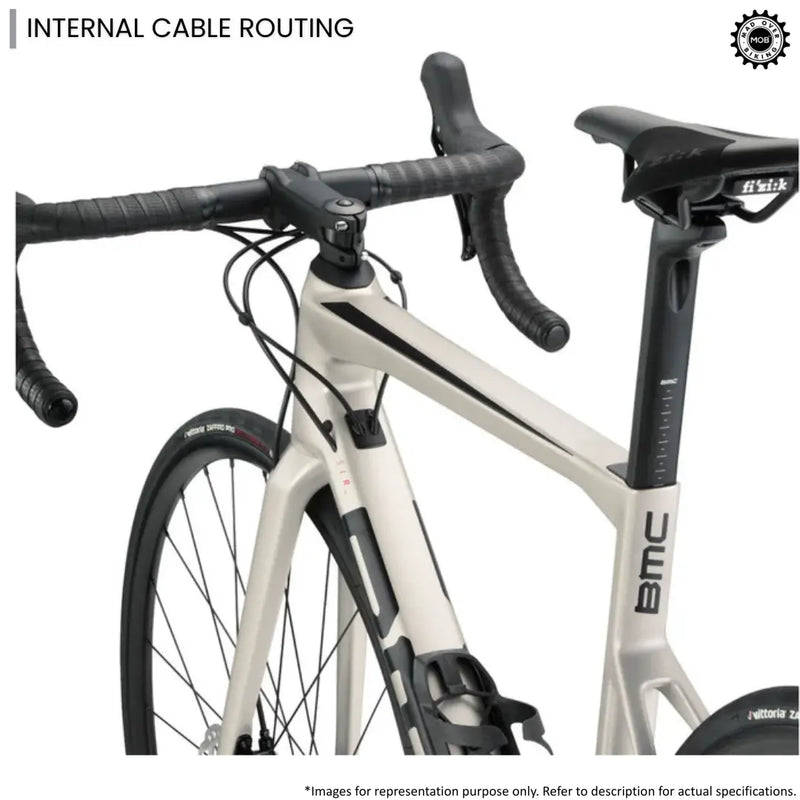

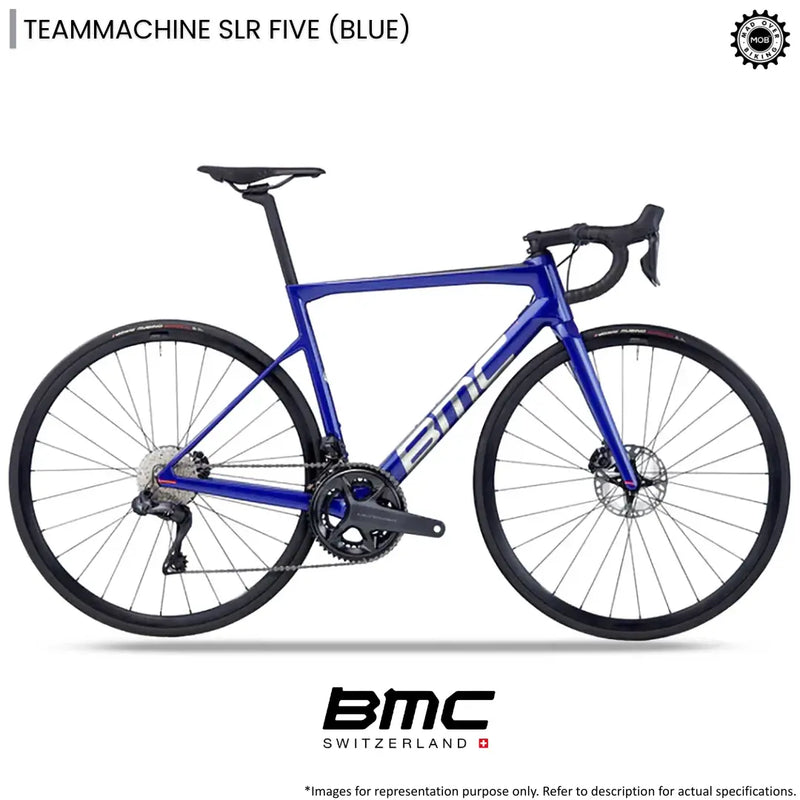

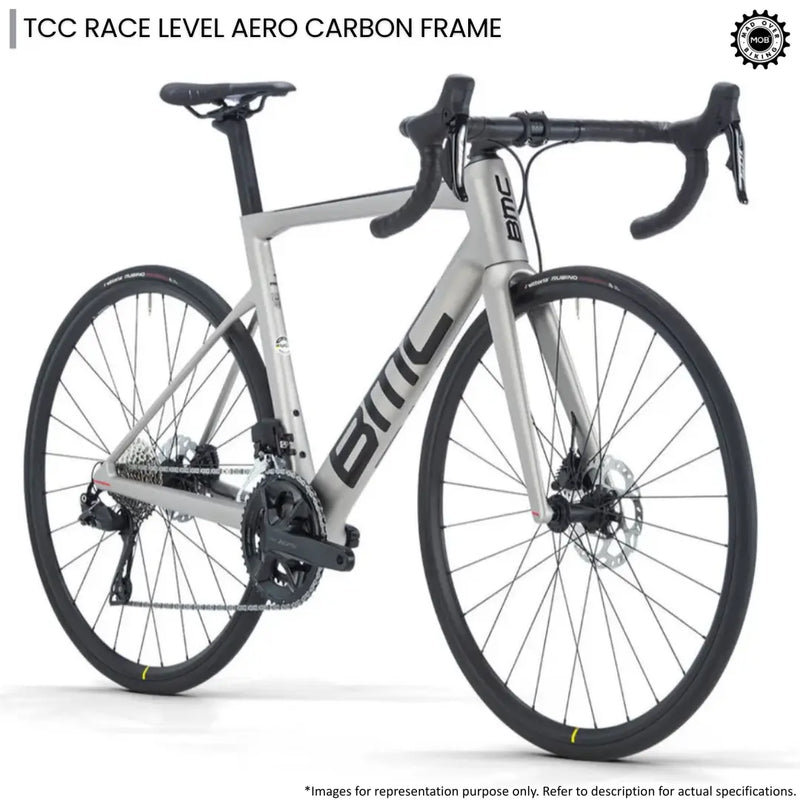

The Teammachine SLR, legendary performance in a widely accessible package. Its Teammachine SLR Carbon frame and fork have been designed using TCC Race Technology, offers Stealth Dropouts and internal cable routing. Introducing the carbon Teammachine SLR range, the Teammachine SLR FIVE has a Shimano 105 groupset with PRD23 wheelset and a compact drop bar.
Features -
Accelerated Composites Evolution Technology + (ACE+) -
ACE+ not only generates thousands of virtual frameset prototypes to satisfy Stiffness, Weight and Compliance targets, but now also includes a fourth key.
Aerocore Design -
The superlight carbon cages seamlessly integrate with the reshaped down tube and seat tube, resulting in significant drag reduction when used with bottles. Available as an ugrade on the Teammachine SLR line.

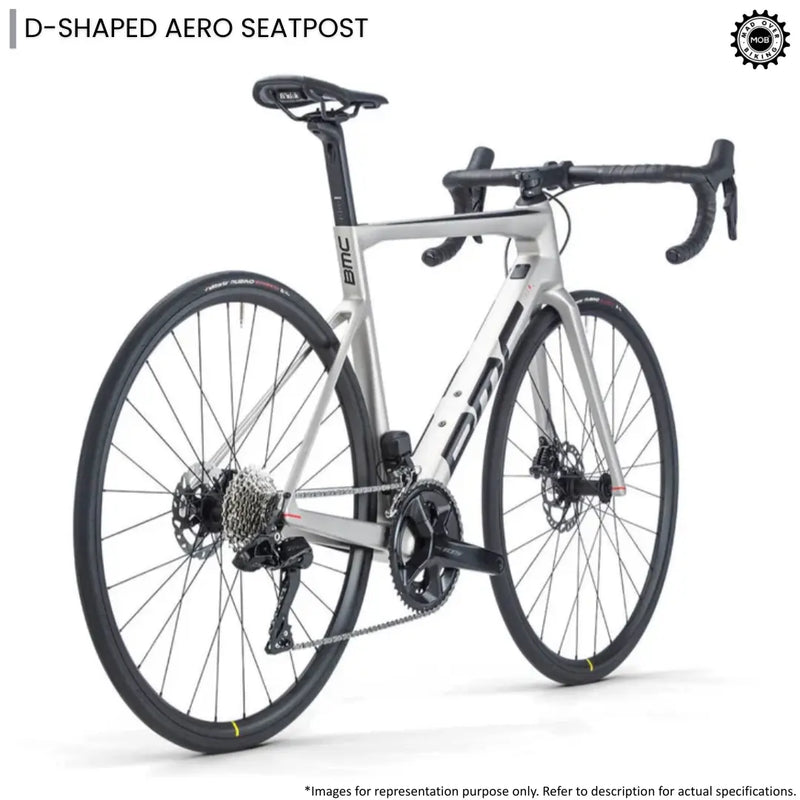

D-Shape Seatpost -
The latest evolution of our signature D-Shape seatpost: this optimized design features the minimalist saddle clamp, resulting in lower weight; while still retaining excellent aerodynamic performance and compliance.
Comfort is Speed -
The new Teammachine SLR is more compliant than ever, thanks to the latest evolution of the Tuned Compliance Concept (TCC) technology.
Bottom Bracket and Torsional Stiffness
Renowned for its power transfer, the new Teammachine SLR goes one step further with a wider bottom bracket contact area provided by the new downtube shape and the optimized carbon layup.
Fork Profile
An aerodynamically reshaped fork with stealth dropout design and integrated thru-axle nut show that high technical proficiency can go hand in hand with beautiful, minimalist aesthetics.
Size Chart -
Manufacturer's Information -
| Size | 47 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Rider Height | <166 | 166-174 | 172-180 | 178-186 | 184-192 | >190 |
| Reach | 367 | 377 | 386 | 392 | 401 | 409 |
| Stack | 506 | 530 | 550 | 565 | 584 | 608 |
| Bar Drop | 125 | 125 | 125 | 125 | 125 | 125 |
| Bar Reach | 70 | 70 | 70 | 70 | 70 | 70 |
| Bar Width | 400 | 420 | 420 | 420 | 420 | 440 |
| BB Drop | 69 | 69 | 69 | 69 | 69 | 69 |
| Crank Length | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
| Fork Length | 368 | 368 | 368 | 368 | 368 | 368 |
| Fork Rake | 48 | 48 | 43 | 43 | 43 | 43 |
| Front Center | 568 | 586 | 589 | 599 | 614 | 630 |
| Head Tube | 110 | 130 | 145 | 165 | 184 | 210 |
| Head Tube Angle | 71.5 | 71.5 | 72.3 | 72.3 | 72.3 | 72.3 |
| Rear Center | 410 | 410 | 410 | 410 | 410 | 410 |
| Seat Angle | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 |
| Seat Tube | 423 | 468 | 504 | 524 | 545 | 574 |
| Seatpost Length | 330 | 380 | 380 | 380 | 380 | 380 |
| Seatpost Offset | 15 | 15 | 15 | 15 | 15 | 15 |
| Standover Height | 717 | 752 | 779 | 797 | 817 | 843 |
| Stem Angle | ±8 | ±8 | ±8 | ±8 | ±8 | ±8 |
| Stem Length | 90 | 90 | 100 | 110 | 110 | 120 |
| Top Tube | 517 | 534 | 549 | 559 | 574 | 589 |
| Trail | 63 | 63 | 63 | 63 | 63 | 63 |
| Wheelbase | 968 | 986 | 989 | 1000 | 1015 | 1030 |
